Roof Drainage System V Profile Gutter Roll Forming Machine

Name: Roof Drainage System V Profile Gutter Roll Forming Machine
Brand: Sussman
Price: 1 USD

Brand Name : Sussman

Model Number : SS-GU

Certification : CCC, SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 11 sets per month

Delivery Time : Shipped in 75 working dys after payment

Packaging Details : Standard package with film, plastic and steel wire. (or customized)

Forming speed : 5-6 meter per minute

Roller station : about 18 forming stations

Roller material : 45# Steel with quenching

Control system : PLC with touch screen

Power supply : 380V, 50Hz, 3Phase

Dirve system : Chain driving system

Contact Now

Roof Drainage System V Profile Gutter Roll Forming Machine

Metal V gutter is a V-shaped roofing component designed to collect and channel rainwater from rooftops into downpipes or drainage systems. Made from durable materials such as galvanized steel, aluminum, or zinc-aluminum coated steel, it offers excellent corrosion resistance and long-lasting performance. Its simple yet strong design allows easy installation and reliable water management for residential, commercial, and industrial buildings.

Technical Parameter

Item NO.	Description	Offered Specification
1.0	Roll forming machine
1.1	Rolling speed	5-6 meter per minute
1.2	Rolling thickness	0.8mm--1.0mm
1.3	Raw material	Galvanized cold steel sheet
1.4	dimension	7500mm800mm1200mm
1.5	Effective width	about 198.2mm
1.6	Roller stations	18 stations
1.7	Roller material	45#forge steel, coated with chrome
1.8	Shaft diameter	Φ70mm ,material is 45# forge steel
1.9	Transmission	By chain 1 inch
1.10	Material of chain	45# forged steel with quenching, 12A
1.11	Material of cutting	Cr12Mov with quench HRC58-62°
1.12	Tolerance of cutting	6m+-1.5mm
1.13	Frame	H type steel

Main Components

No.	Name	Quantity

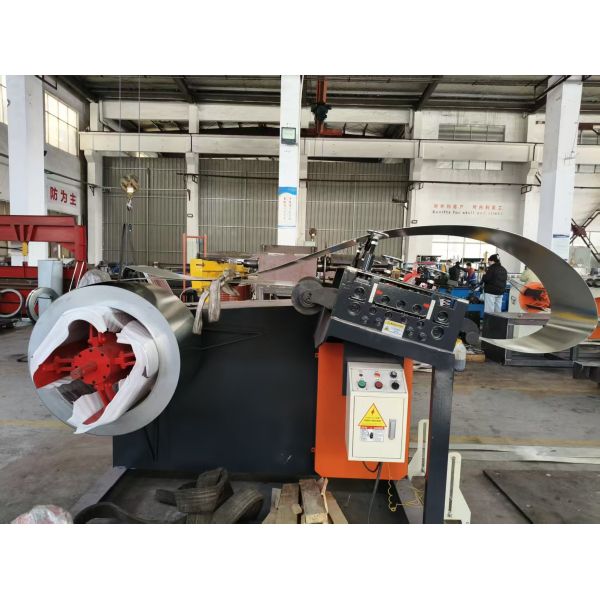

1	3T automatical decoiler	1 set

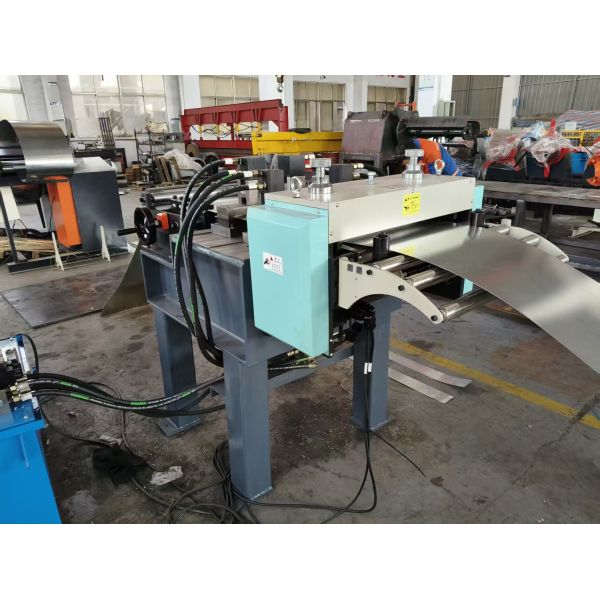

2	Hydraulic punching device and servo feeding	1 set
3	Main roll forming machine	1 set

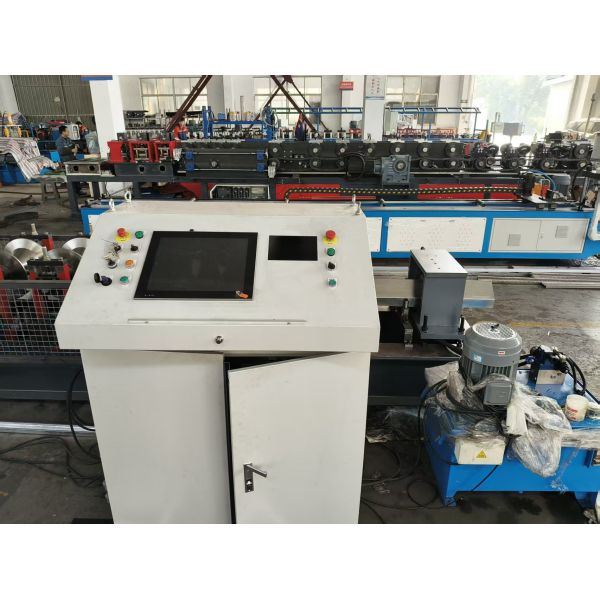

4	Control box	1 unit
5	Hydraulic station	1 unit
6	Out table	1 unit

Roll Forming Machine Working Flow

Decoiler ---- Feeding --- Levelling--- Hydraulic punching ---Roll forming-- Cutting - Run out table

Roof Drainage System V Profile Gutter Roll Forming Machine

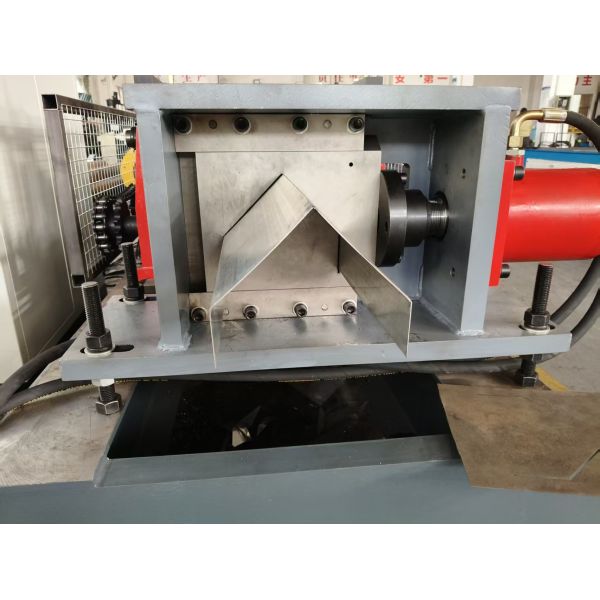

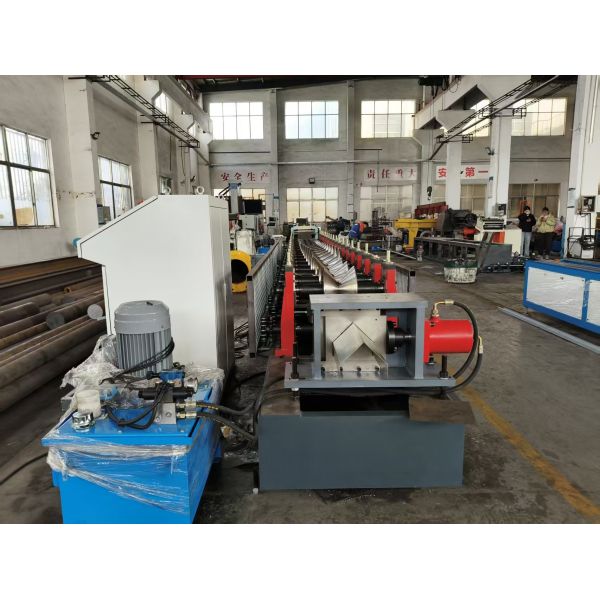

Machine Photo

Roof Drainage System V Profile Gutter Roll Forming Machine

After-sale Serive

- The seller takes responsibility for installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 6 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: about 3 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 300$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
