Colorbond Steel Fencing Manufacturer 0.5-0.8mm Thickness 65*24 Fence Post Column Roll Forming Machine
The fencing system includes fence posts, fence tracks, and fence panels. It requires three roll forming machines: a roll forming machine for the fence bpanel, a roll forming machine for the fence tracks, and a roll forming machine for the fence panels.

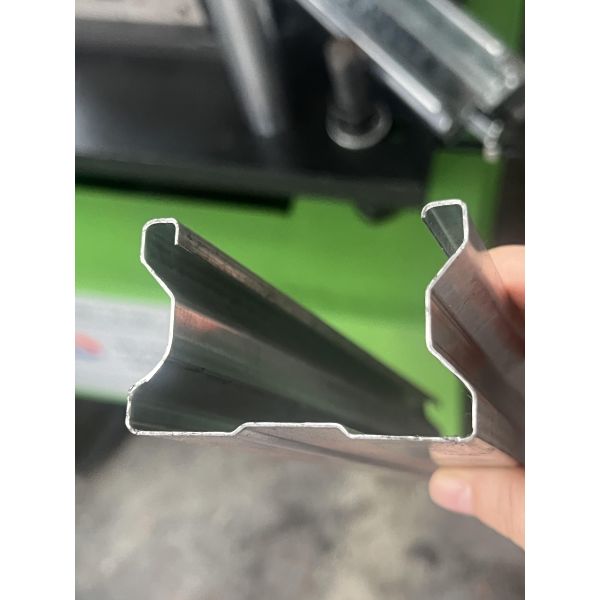

A fence post roll forming machine is a complete production line used to manufacture metal fence profiles with notched edges or slotted holes for support in metal fence systems. Fence posts and railings are fundamental elements of fence security systems and are widely used in home gardens, schools, factories, etc.
The fence guide rail roll forming machine consists of an uncoiler, a roll forming system, and a hydraulic cutting and control system.
Technical Data
| project | Specification |
| Coil material | Material thickness | 0.5-0.8 mm galvanized steel, G235-350 MPa |
| | United Nations winding machine | 3-ton manual |
| Molding system | Rolling speed | Approximately 10-20 meters per minute |
| | Roller station | Approximately 16-20 stations |
| | Roller material | 45# steel with a quenched 60mm shaft |
| | Maim motor power | 7.5 kilowatts |
| | Hydraulic cutting power | 3 kilowatts |
| Cutting
system | Cutting materials | CR12 quenching treatment |
| | hardness | HRC58-62 |
| | tolerance | ±1.5 mm |
| Electrical control system | power supply | 380V, 50Hz, 3-phase
can also meet customer requirements. |
| | control system | PLC with touch screen |
| | weight | Approximately 3.5 tons |
| | driving method | 1-inch single chain |
| | Machine size | Length 10000 mm * Width 800 mm * Height 1500 mm |
Machine List:
| 3-ton manual uncoiler | 1 set |
| Guided feeding | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic station | 1 set |
| 4-meter exterior | 1 set |
| Safety cover | 1 set |

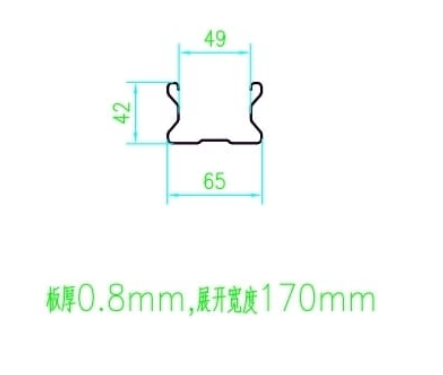

Profile Drawing:
Application:
After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
|
|
