13 Stations Roof Batten Steel Roll Forming Machine For Light Steel Trusses

Name: 13 Stations Roof Batten Steel Roll Forming Machine For Light Steel Trusses
Brand: Sussman
Price: 15000 USD

Quality 13 Stations Roof Batten Steel Roll Forming Machine For Light Steel Trusses for sale

Brand Name : Sussman

Model Number : SM-CM

Certification : CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : USD15000-16500 per set

Payment Terms : T/T L/C, D/P, Western Union, MoneyGram

Supply Ability : 10 sets per months

Delivery Time : 45-55 days after deposit

Packaging Details : Film and Steel

Rolling speed : 10-12m/min(not include cutting time)

Rolling thickness : 3mm

Raw material : Galvanized steel sheet

Roller material : 45#forge steel, coated with chrome

Material of chain : 45# forged steel with frequency quenching, 12A

Tolerance : ±1.5mm

Transmission : By chain 1.5 inch

Roller stations : 13 stations

Frame : H type steel

Contact Now

13 Stations Roof Batten Roll Forming Machine For Light Steel Trusses

Technical Parameter

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	10-12m/min(not include cutting time)
1.2	Rolling thickness	3mm
1.3	Raw material	Galvanized steel sheet
1.6	dimension	5500×600×1200(mm)
1.7	Effective width	91mm
1.8	Roller stations	13 stations
1.9	Roller material	45#forge steel, coated with chrome
1.10	Shaft diameter	Φ60mm ,material is 45# forge steel
1.11	Transmission	By chain 1.5 inch
1.12	Material of chain	45# forged steel with frequency quenching, 12A
1.14	Material of cutting	Cr12Mov with quench HRC58-62°
1.15	Tolerance	10m+-1.5mm
1.16	Frame	H type steel

Technological process

Decoiling - Feeding with guide - Roll forming - Cutting - Products Output

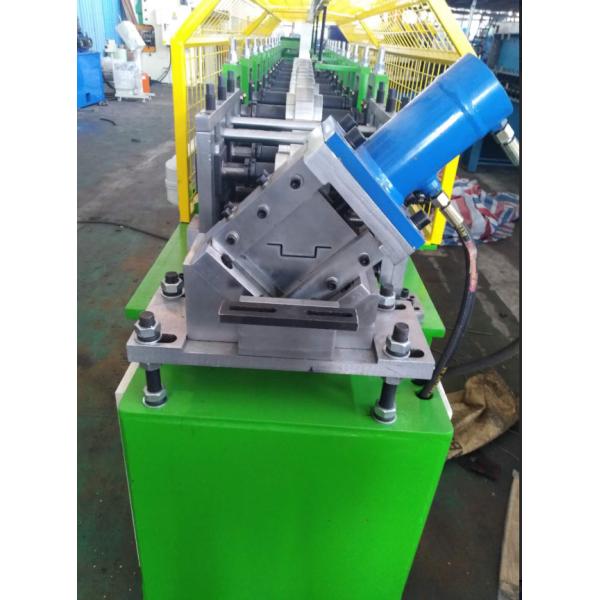

13 Stations Roof Batten Steel Roll Forming Machine For Light Steel Trusses

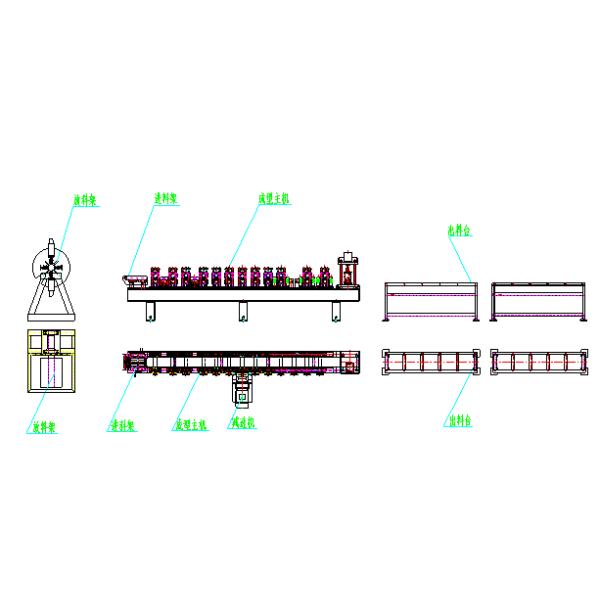

Machine profile

Features and Components of the machine

--Simple structure & beautiful appearance, we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
--Main parts of machine are famous brand, to ensure the machine normal function very effectively.
-- Length of panel forming and cutting adopts automatically to guarantee the length to be precise and the finished product clear without deforming.
-- Install the equipment and suitable for producing in the factory easily
-- Low noise and high efficiency.

13 Stations Roof Batten Steel Roll Forming Machine For Light Steel Trusses

Loading Photo
