Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control

Name: Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control
Brand: Sussman
Price: 23800 USD

Quality Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control for sale

Brand Name : Sussman

Model Number : SS-FP

Certification : SGS, ISO, CE

Place of Origin : China

MOQ : 1 set

Price : USD23800-USD43800

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days working days after deposit

Packaging Details : Standard package with film, plastic and steel wire. (or customized)

Suitable Raw Material : colour steel or galvanized steel sheet

Material Thickness : 0.15-0.4mm

Machine weight : About 3 Ton

Rolling Speed : 12-15m/min

Roller stations : 6 stations

Control system : PLC with touch screen

Roller Material : Gcr15 Steel with quenching

Shaft Material : 45# Steel Diameter 75mm shaft

Material Of Cutting : CR12 with quench treatment

Tolerance : +-1.5mm

Contact Now

Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control

Technical parameter

1	Suitable to process	GI,PPGI
2	Type of the product	right angle steel (as your need)
3	Thickness of the plate	0.14-0.8mm
4	De-coiler	opinional
5	Rollers for forming	9 rows
6	Diameter of the roller	74 mm
7	Rolling material	GCr15
8	Main motor power	8-11kw,5#
9	Productivity	8-12m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 1.00mm
14	Control system	Delta PLC control
15	Side panel of machine	14mm
16	Main structure of the machine	300 H steel
17	Weight	About 2.0T
18	Dimensions	600020001506mm
19	Voltage	380V 50Hz 3phases(changeable as needs)

Main Components

No	Name	Quantity
1	5 ton passive de-coiler	1 set
2	Main roll forming machine	1 set
3	Control box	1 unit
4	Hydraulic station	1 unit
5	Out tables	2 units

Working Flow of Roll Forming Machine

A.Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)

B.Servo Feeding Applicator............................................To feed the material accurately

C.Hydraulic/Press Punching...........................................To punch as requirements

D.Roll Forming Unit.........................................................To roll form as requirements

E.Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)

F.Output Table................................................................Support the finished products

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control

Profile and drawing of product:

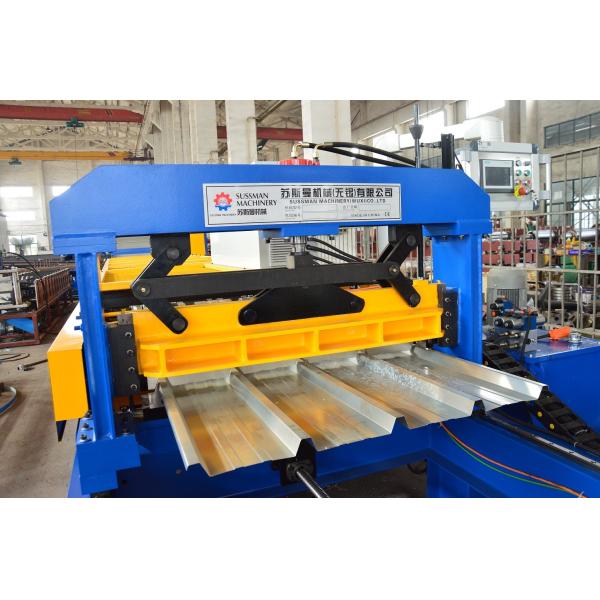

Machine Photo

Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control
